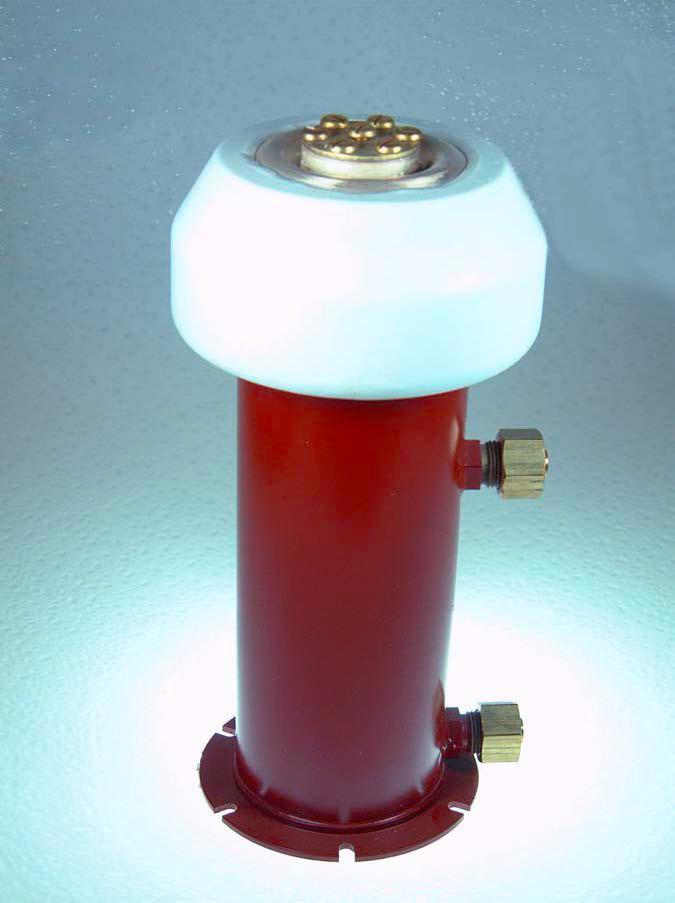

型号PWC10103MA, PWC系列水冷式陶瓷电容器

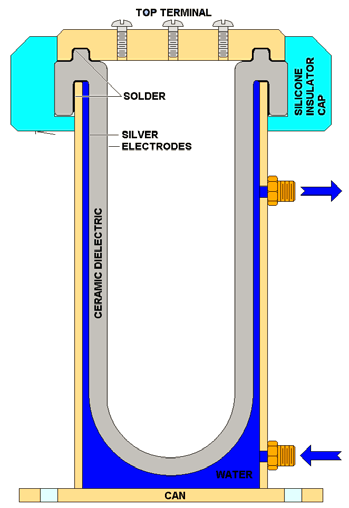

PWC系列陶瓷电容器是一款大型的水冷式“锅”型组件，可提供300安培的电流容量和4000 kVA的最大无功额定功率。这些组件由具有低耗散系数的I类电介质组成，
结合了优越的结构强度和高水冷热力学效率，可以允许在极高的功率水平和高频下运行。它们非常适合在高功率射频设备的储能电路中操作。广泛得到的应用，包括感应加热、介电加热和高频焊接设备。

总括信息
温度范围	运行: -55° C to +85 ° C
温度范围	储存: -55° C to +125 ° C
电容公差	标准 ± 20%
电容公差	可选 ± 10%
耗散系数	0.05% Maximum
介质强度	在25°C下可承受1.4倍额定工作电压的交流电势10秒
绝缘电阻	10,000 Megohms (MΩ) Minimum
标准标识	“HEC”, 电容值, 公差, 工作电压 (VDC), 最大频率,
标准标识	最大无功功率、最大电流和日期代码

电容电压性能信息						型号
pF	VMAX (kVDC)	fL (MHz)	SMAX (kVA)	fH (MHz)	IMAX (ARMS)
10,000	10	0.636	2000	0.623	280	PWC10103MA
5000	12	0.563	1275	0.561	150	PWC12502MA
400	14	6.09	1500	5.96	150	PWC14401MA
1000	14	2.43	1500	2.38	150	PWC14102MA
1500	14	1.08	1000	2.38	150	PWC14152MA
2000	14	1.22	1500	1.19	150	PWC14202MA
2500	14	0.974	1500	0.954	150	PWC14252MA
5000	14	0.649	2000	0.636	200	PWC14502MA
7500	14	0.649	3000	0.442	250	PWC14752MR
7500	14	0.649	3000	0.636	300	PWC14752MA
7600	14	0.534	2500	0.523	250	PWC14762MA
10,000	14	0.454	2800	0.477	290	PWC14103MA
4000	16	0.776	2500	0.994	250	PWC16402MA
5000	16	0.703	2830	0.702	250	PWC16502MA
6000	16	0.586	2830	0.585	250	PWC16602MA
7600	16	0.409	2500	0.523	250	PWC16762MA
10,000	16	0.422	3395	0.421	300	PWC16103MA
7600	18	0.323	2500	0.523	250	PWC18762MA
10,000	18	0.245	2500	0.397	250	PWC18103MA
3000	20	0.530	2000	1.06	200	PWC20302MA
5000	20	0.477	3000	0.662	250	PWC20602MA
6000	20	0.398	3000	0.644	270	PWC20602MA
7500	22	0.350	4000	0.649	350	PWC22752MA
5000	25	0.326	3200	0.621	250	PWC25502MA

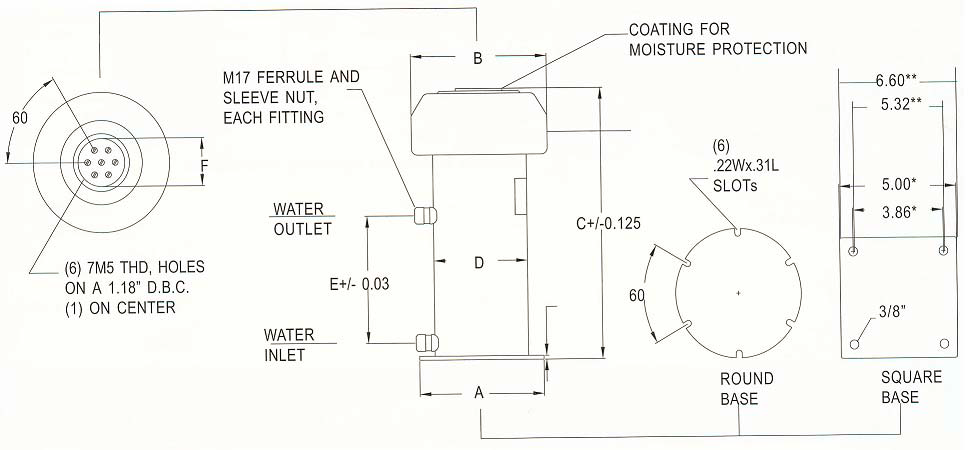

尺寸信息						冷却流量
型号	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	(gallon/minute)
PWC10103MA	*	5.83	11.93	4.00	7.09	2.00	0.38
PWC12502MA	3.74	4.18	8.66	2.75	4.53	1.50	0.27
PWC14401MA	3.74	4.18	6.38	2.75	2.17	1.50	0.27
PWC14102MA	3.74	4.18	7.36	2.75	3.15	1.50	0.27
PWC14152MA	3.74	4.18	6.38	2.75	2.17	1.50	0.27
PWC14202MA	3.74	4.18	6.38	2.75	2.17	1.50	0.27
PWC14252MA	3.74	4.18	6.38	2.75	2.17	1.50	0.27
PWC14502MA	5.32	5.83	6.38	2.75	5.28	2.00	0.27
PWC14752MR	5.32	5.53	11.38	4.00	5.28	2.00	0.40
PWC14752MA	6.60	6.69	10.63	5.00	5.28	2.95	0.57
PWC14652MA	*	5.83	11.93	4.00	5.28	2.00	0.54
PWC14103MA	*	5.83	15.95	4.00	11.02	2.00	0.54
PWC16402MA	5.32	5.83	8.53	4.00	4.25	2.00	0.49
PWC16502MA	5.32	5.83	9.80	4.00	5.28	2.00	0.40
PWC16602MA	5.32	5.83	10.70	4.00	5.28	2.00	0.40
PWC16762MA	**	6.69	10.63	5.00	5.51	2.95	0.54
PWC16103MA	**	6.69	13.89	5.00	8.19	2.95	0.70
PWC18762MA	*	5.83	16.54	4.00	11.02	2.00	0.54
PWC18103MA	**	6.69	16.54	5.00	11.02	2.95	0.54
PWC20302MA	5.32	5.83	9.53	4.00	4.24	2.00	0.38
PWC20502MA	5.32	5.83	11.25	4.00	5.28	2.00	0.40
PWC20602MA	**	6.69	10.95	5.00	5.35	2.95	0.57
PWC22752MA	**	5.69	13.23	5.00	7.64	2.95	0.80
PWC25502MA	5.32	5.83	14.69	4.00	8.50	2.00	0.62

详细参数

CAP	10000 pF
V_MAX (DC)	10 kV
f_L	0.636 MHz
S_MAX	2000 kV·A
f_H	0.623 MHz
I_MAX (RMS)	280 A
运行时温度范围	-55 to +85 ºC
储存温度范围	-55 to 125 ºC
公差	±20% (Standard)±10% (Optional)
最大耗散系数	0.05%
介质强度	Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
绝缘电阻	10000 MΩ
标准标识	"HEC", Capacitance, Tolerance, Rated Working Voltage (V_DC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code

冷却要求

电容最高温度	The maximum allowable temperature of the Inner Terminal is 100ºC.
最高温升	The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
入口温度	30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
冷却水压	Not to exceed 60 PSIA (132 feet of H₂O)
闭合系统降额	Increase Cooling Flow by 20% when antifreeze is used

型号对照

Part Number	CAP	Dielectric (TC)	VMAX(DC)	fL	SMAX	fH	IMAX(RMS)
HT594500MA	50 pF	NP0	25 kV	0.509 MHz	50 kV·A	18.0 MHz	16.8 A
HT594750MA	75 pF	NP0	25 kV	0.339 MHz	50 kV·A	13.6 MHz	17.9 A
HT594101MA	100 pF	NP0	25 kV	0.254 MHz	50 kV·A	13.0 MHz	20.2 A
HT594131MA	130 pF	NP0	25 kV	0.196 MHz	50 kV·A	14.2 MHz	24.1 A
HT594151MA	150 pF	N750	25 kV	0.170 MHz	50 kV·A	13.9 MHz	25.6 A
HT594201MA	200 pF	N750	25 kV	0.127 MHz	50 kV·A	14.3 MHz	30.0 A
HT594251MA	250 pF	N750	25 kV	0.102 MHz	50 kV·A	16.0 MHz	35.5 A
HT594301MA	300 pF	N3300	25 kV	0.0848 MHz	50 kV·A	5.18 MHz	22.1 A
HT594501MA	500 pF	N3300	25 kV	0.0509 MHz	50 kV·A	3.36 MHz	23.0 A
HT594701MA	700 pF	N3300	25 kV	0.0363 MHz	50 kV·A	2.73 MHz	24.5 A
HT594801MA	800 pF	N5250	25 kV	0.0318 MHz	50 kV·A	2.10 MHz	23.0 A
HT594102MA	1000 pF	N5250	25 kV	0.0254 MHz	50 kV·A	1.99 MHz	25.0 A
HT594152MA	1500 pF	N5250	25 kV	0.0170 MHz	50 kV·A	1.67 MHz	28.1 A
HT59 CUSTOM	50 to 1500 pF	N/A	15 kV20 kV25 kV	N/A	N/A	N/A	N/A
